Patch Panel Selection Guide: Find the Right Cabling Solution for Your Network
Whether for data centers, enterprise server rooms, or intelligent building cabling, the patch panel is an essential component in any structured cabling system. It not only centralizes cable termination but also ensures network stability. Ningbo Latitude offers a complete range of 19‑inch patch panels, covering Cat5e, Cat6, Cat6a, UTP/FTP, multiple port counts, and various mounting options to suit diverse project needs.
Why the Right Patch Panel Matters
A well‑designed patch panel helps:
Simplify troubleshooting – each port is clearly numbered, no need to trace messy cables.
Improve cooling – neat cable layout does not block airflow in the cabinet.
Enable future expansion – add or change equipment easily from the front side.
Our Patch Panel Series

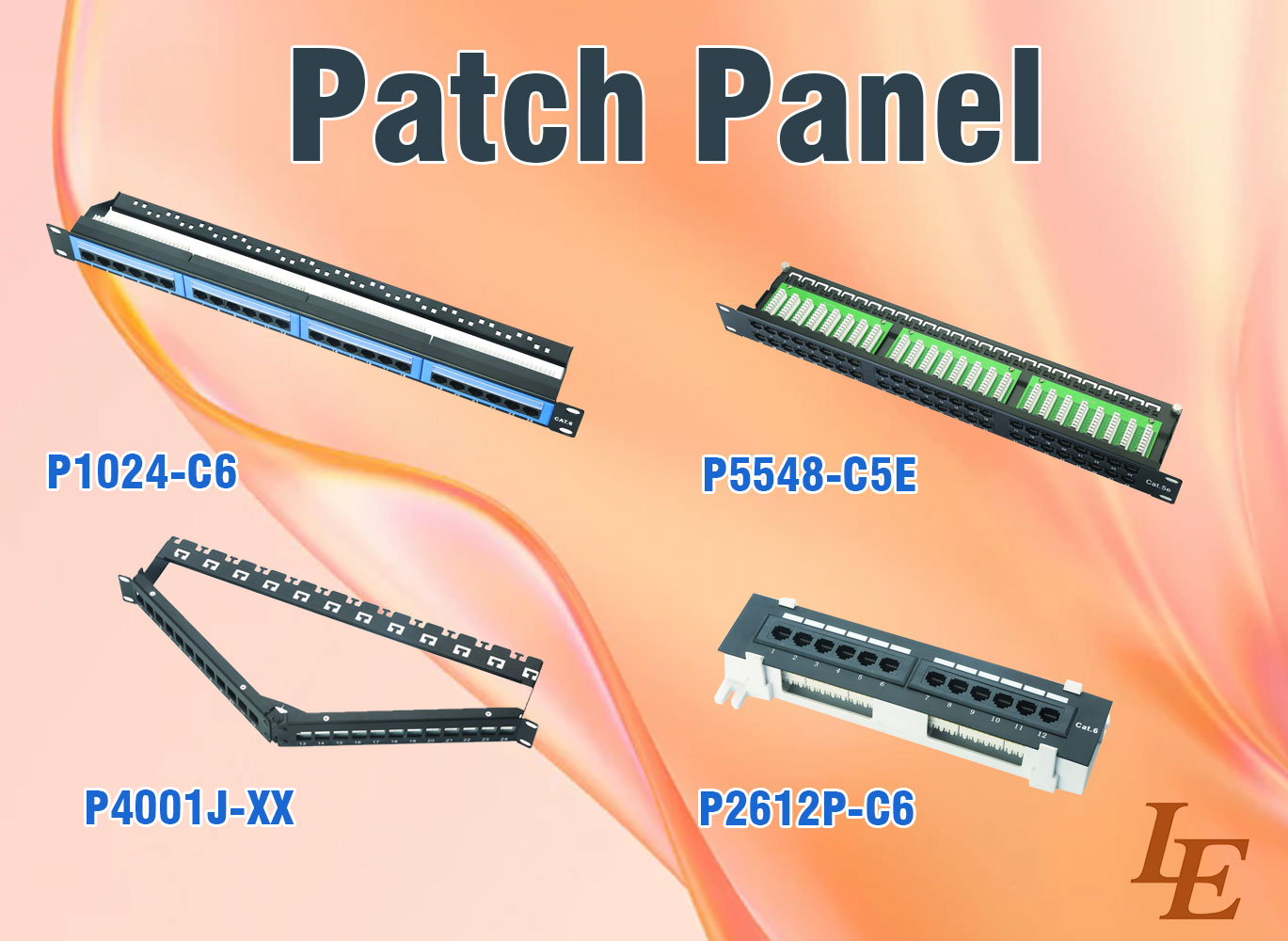

Based on our catalog (LE series) and general specifications, we offer the following main types:
1. By Performance Category
| Category | Standard | Typical Application |
|---|---|---|
| Cat5e | Gigabit Ethernet | Office, voice, 100M upgrade |
| Cat6 | Gigabit/10G (up to 55m) | Data center, HD video, PoE+ |
| Cat6a | 10G (100m) | High-frequency trading, medical imaging, research |
2. By Shielding Type
UTP (Unshielded) – Cost‑effective, easy to install, suitable for normal environments.
FTP (Foiled Twisted Pair) – Resists crosstalk and external interference, ideal for industrial or high‑density cabling.
3. By Port Count & Height
12 / 24 / 48 ports – Common densities; 1U can hold up to 48 ports (with LC duplex or high‑density).
0.5U / 1U / 2U – Choose according to rack space; models with integrated cable management bar improve neatness.
4. By Termination Type
Krone IDC (90° or 180°) – Tool‑less termination, fast and secure.
Feed‑through (Coupler) – For quick patch cord extension, no on‑site punching required.
5. By Mounting Angle
Flat – Traditional, suitable for front‑rear patching.
Angled (45°) – No extra cable manager needed; guides patch cords to the sides and reduces bend radius.
Key Quality Features
All panels are made of 1.2mm SPCC cold‑rolled steel with a four‑step surface treatment: degreasing, pickling, phosphating, and powder coating – corrosion‑resistant and durable. Port numbers are laser‑marked or silk‑screened for long‑term readability. Every panel is tested for continuity and crosstalk before shipment.
Selection Advice
New data center – Choose Cat6a FTP, 48‑port 1U angled patch panel with cable management bar for easy maintenance and high density.
Office environment – Cat6 UTP, 24‑port 1U flat panel, economical and reliable.
Industrial site – Cat5e or Cat6 FTP shielded type with grounding terminal to reduce EMI.
Building telecom room – 12‑ or 24‑port panel with 50% spare capacity for future growth.
Conclusion
Ningbo Latitude offers a full range of patch panels from Cat5e to Cat6a, 12 to 48 ports, flat or angled, UTP or FTP, to meet all your structured cabling requirements. All products comply with ISO/IEC 11801 and TIA/EIA standards. When combined with our network cabinets, fiber patch cords, and cable managers, they form a complete data center infrastructure solution.
For custom label colors, logo printing, or special port layouts, please inquire about our OEM services.
