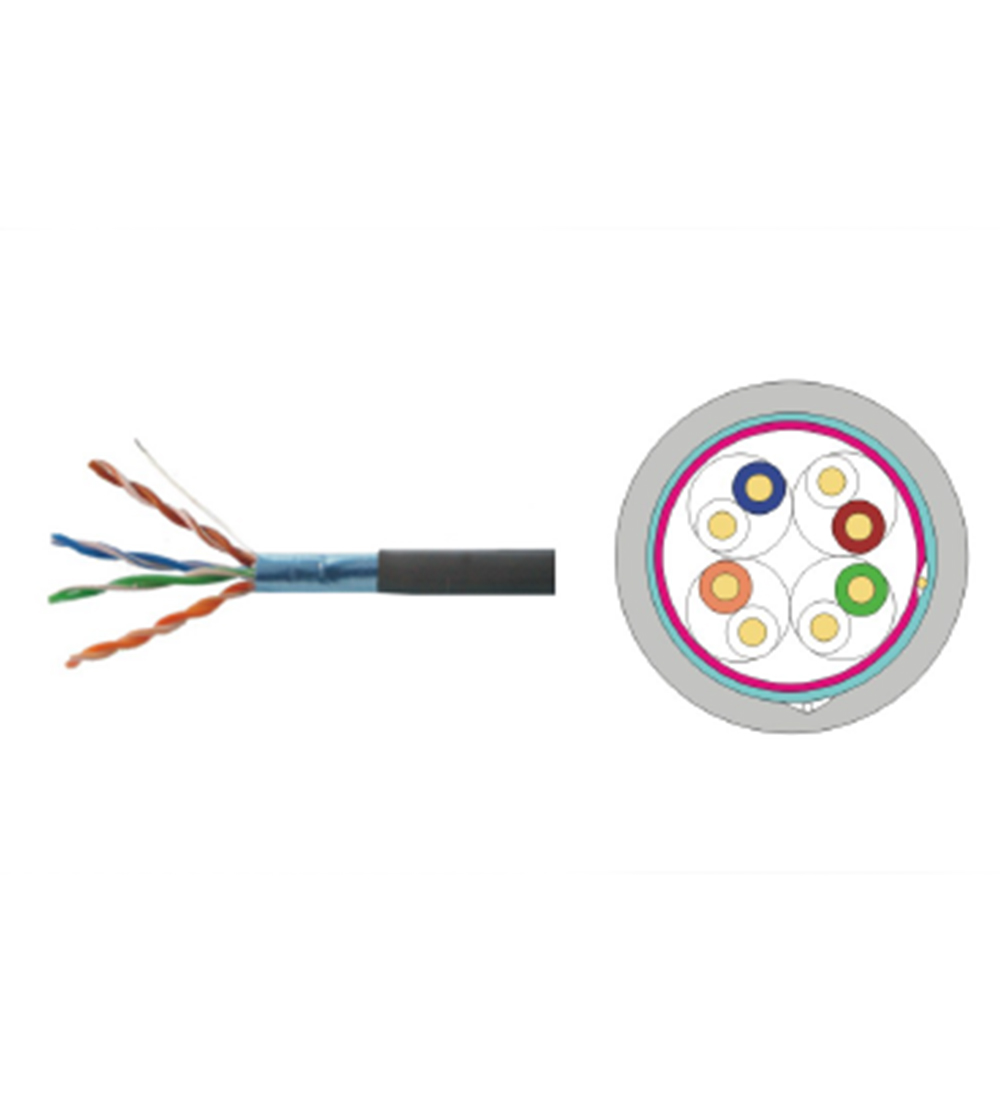

F/UTP CAT5e shielded twisted 4 pairs cable(solid)
LE-F/UTP5E305PVC
Quick Overview:
Applications
·Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP_PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 100mbps TPDDI, Fast Ether_net ETC
Structure:
·Bare copper, PE insulation, FR PVC/LSZH jacket.
Standards:
·ISO/IEC 11801, ANSI/TIA/EIA-568B
Certificate:
·UL, ETL, CE
·Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP_PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 100mbps TPDDI, Fast Ether_net ETC
Structure:
·Bare copper, PE insulation, FR PVC/LSZH jacket.
Standards:
·ISO/IEC 11801, ANSI/TIA/EIA-568B
Certificate:
·UL, ETL, CE
- Specification
| tem Name | FTP CAT5E Lan Cable |
| TYPE | Cat5E |
| Conductor | CCA or 24AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | HDPE |
| Drain Wire | 24AWG |
| Shielding | PET/ Aluminum Foil |
| Application | Lan cable |
| Jacket | PE |
| Operating temperature | -50 ° C - +70 ° C |
| Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
| Certificate | CE/ISO/RoHS Approved |
